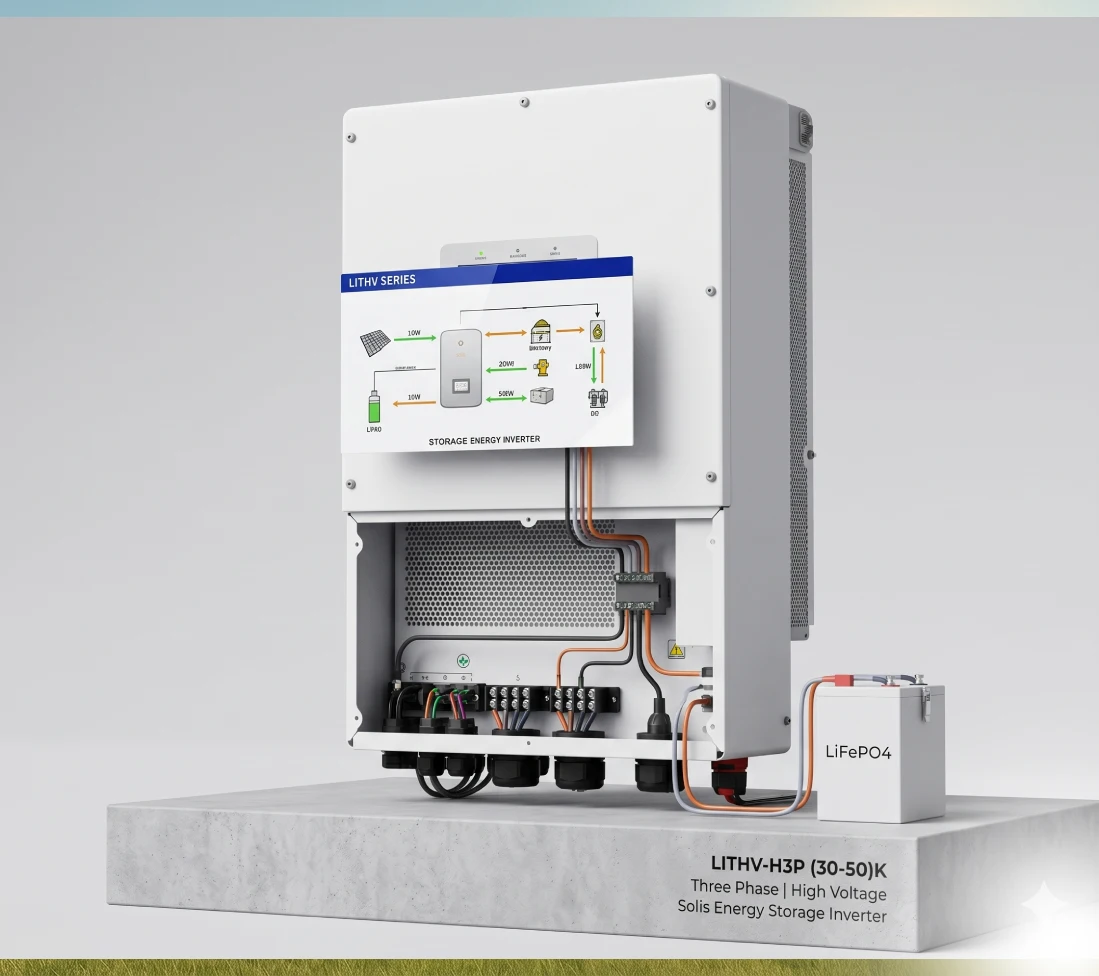

ITHV-H3P (30-50)K Three-Phase High Voltage Hybrid Inverter

Description

High Efficiency & Power: Usable PV power up to 200% of the inverter’s rated power to maximize your solar generation.
Modern Module Compatibility: Supports up to 20A PV input current, making it a perfect match for high-power, large-format solar panels.
Ultimate Grid Resilience: Rapid, seamless on-grid to off-grid switching time of less than 10ms (<10ms).
Smart Load Management: Features Smart Load Prioritizing to extend essential runtime for your critical electrical loads.
Flexible Multi-Source Integration: Equipped with a SmartLoad/GEN/INV port for flexible connection of grid-tied inverters, diesel generators, or wind turbines.
Scalable Power: Supports up to 10 units in parallel for large residential or commercial expansions.

Battery Type: Lithium-Ion (Li-Ion)
Battery Voltage Range: 150 V – 800 V (High Voltage)
Max. Charge/Discharge Current: Up to 140A (Supports faster charging)
Configuration: 2 independent battery connections for highly flexible configurations.

Grid Voltage: Three-Phase (3/N/PE), 220V/380V, 230V/400V
Grid Frequency: 50 Hz / 60 Hz
Backup Overload Capability: Powerful 160% overload capacity to handle high-surge startup loads.

Robust Safety Suite: Includes Anti-Islanding protection, Output Over-current protection, Short Circuit protection, DC Reverse-Polarity protection, and an Integrated DC Switch.
Surge Protection: Built-in DC Type II / AC Type II protection.
Premium User Interface: Features a 7-inch large LCD display built with high-grade, U.S.-made ZEITLER industrial components.
Connectivity: Standard CAN and RS485 communication. Supports external monitoring via Bluetooth + App, Ethernet, and optional Wi-Fi or Cellular.
Environment Proof: IP66 Ingress Protection rating with intelligent fan-cooling, designed to operate efficiently from -25°C to +60°C.
